Equipment/Device Data Screen (Device Data tab)
The Equipment/Device Data screen provides detailed information about equipment. It can be opened from various screens by clicking on the serial number of the equipment. The most common way to open it is through the Equipment List screen, which is described in the steps below. The Equipment List screen offers an overview of the equipment, while this screen provides detailed information.
The Equipment/Device Data screen has up to seven tabs. This help topic discusses the information found under the Device Data tab. This tab provides identification information about the equipment as well as: status, alarm contacts, scheduled preventative maintenance tasks, alarm history, cycle tapes, real-time temperature and pressure (if the equipment relies on these), etc.
Perform the following steps to access the Equipment/Device Data screen with the Device Data tab selected.
Steps
Step 1. Click on the Equipment icon in the menu. The Equipment List screen displays.
Figure. Equipment List screen
Step 2. Find the equipment you want to see more information about and click on its serial number. Its Equipment/Device Data screen displays with the Device Data tab selected.
NOTE: The gauges and the Remote Monitoring summary can be seen only if your facility has the Remote Monitor subscription and your account was setup to allow you access to remote monitoring features. Not all equipment display gauges. For example, if the equipment does not have a chamber, then the Chamber Temperature gauge and Chamber Pressure gauge do not display.

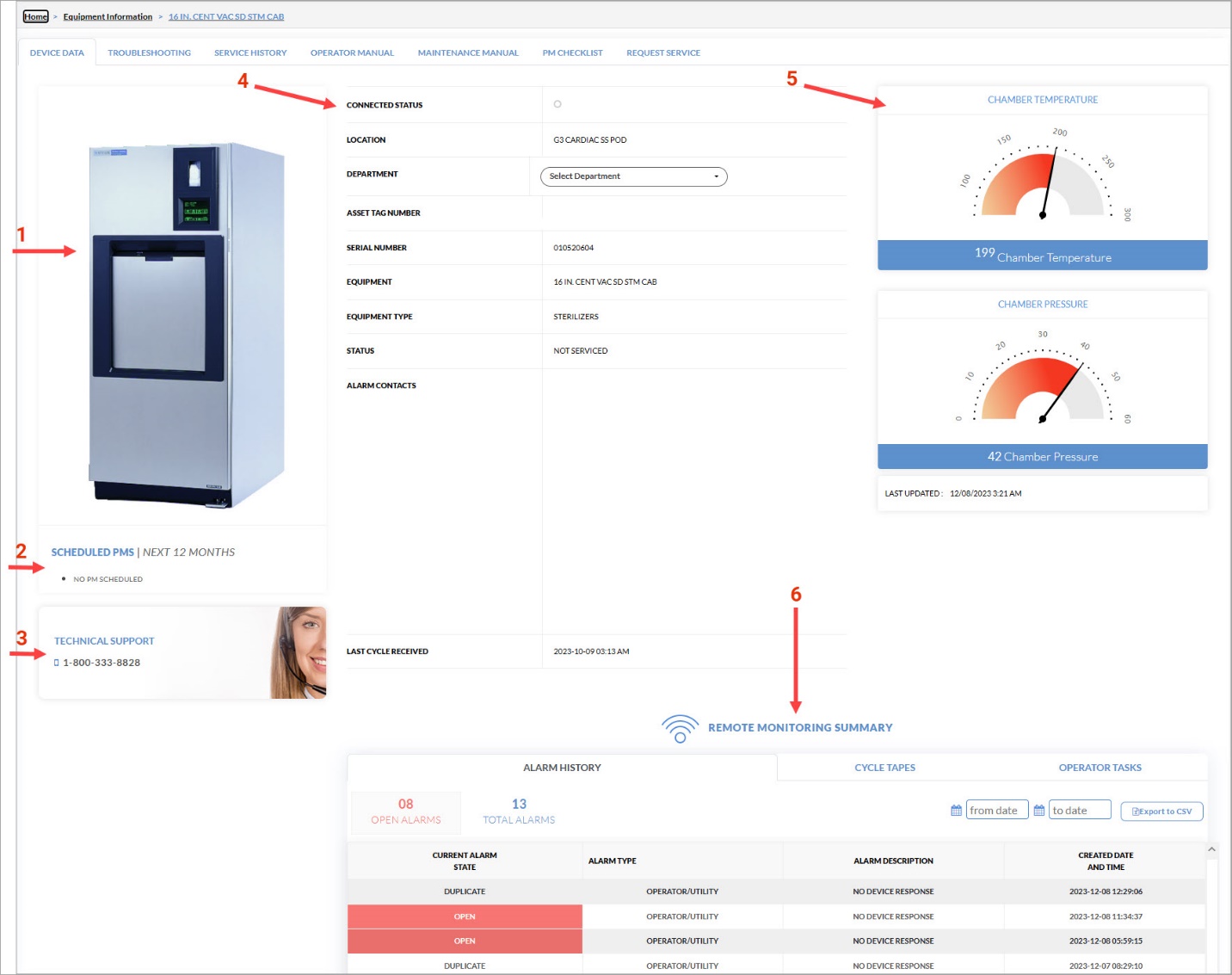

Figure. Equipment/Device Data screen (Device Data tab)
Table. Equipment/Device Data screen (Device Data tab)
ITEM | DESCRIPTION |
1. ILLUSTRATION | |
Photograph or drawing of the equipment | |
2. SCHEDULED PMs (for next 12 months) | |
| Contains a checkmark if the task has been completed |
Task name | Preventative maintenance scheduled to be performed over the next 12 months. When a month ends, the tasks assigned to the oldest month drop off. For information about what is done during these tasks, refer to the equipment manuals. |
Date | Day the preventative maintenance will be performed. Open tasks scheduled for the next 12 months are listed here. After a task is completed, it remains in the list until its month is removed from the list. |
3. TECHNICAL SUPPORT INFORMATION | |
Telephone number to reach the STERIS Technical Care team (1-800-333-8828) | |
4. EQUIPMENT INFORMATION | |
Connected Status | Indicates if the equipment is connected.
|
Location | Where the equipment is located |
Department drop‑down menu | Select the department from the drop-down menu. |
Asset Tag Number | Number assigned to the equipment by your facility |
Serial Number | Unique number assigned to the equipment by STERIS |
Equipment | Description of the equipment |
Equipment Type | Product family the equipment belongs to |
Status | Shows the status of the equipment, such as: active, not serviced, obsolete, etc. What can display depends on how the equipment’s account was setup. |
Alarm Contacts | List of users that are contacted when an alarm is triggered |
Last Cycle Received | Day and time the last cycle tape for this equipment was received by the ConnectCare service portal |
5. GAUGES (Some equipment only measure temperature or pressure, not both. Others do not measure either.) | |
Chamber Temperature gauge | If the device is connected, this gauge shows the current temperature of the sterilizer’s chamber. NOTE: Only available when Remote monitoring is enabled. |
Chamber Pressure gauge | If the device is connected, this gauge shows the current pressure within the sterilizer’s chamber. NOTE: Only available when Remote monitoring is enabled. |
Last Updated (day and time) | Day and time the gauge(s) were last updated. If the equipment is connected, then the gauges are updated continuously in real time. |
6. REMOTE MONITORING SUMMARY (Only available when Remote monitoring is enabled.) | |
Alarm History tab | Displays the following alarm information for the selected equipment. You can specify that only information from a selected range of days is shown. You can export the displayed information into a CSV file. Summary information is located above the columns of information:
For each alarm there is a row of information with the following columns:
NOTE: Closed alarms are highlighted in green.
NOTE: If your company has the Remote Monitor subscription, then under the Alarm description there may be a link titled “View Troubleshooting Steps.” Click on it to see information that may help you resolve the issue yourself.
|
Cycle Tapes tab | Allows you to view cycle tapes that were created during the selected range of days. You can export the displayed information into a CSV file. |
Operator Tasks tab | Displays the following information. You can specify that only information from a selected range of days is shown. You can also export the displayed information into a CSV file.
- Red Past due - Green Completed - Gray Equipment is offline (cannot run tasks on offline equipment) - White Upcoming/Not yet due (for example, start time is 4 hours away)
|
contains a checkmark if the task has been completed
