Equipment/Device Data Screen (PM Checklist tab)

The Equipment/Device Data screen provides detailed information about equipment. It can be opened from various screens by clicking on the serial number of the equipment. The most common way to open it is through the Equipment List screen, which is described in the steps below. The Equipment List screen offers an overview of the equipment, while this screen provides detailed information.

The Equipment/Device Data screen has up to seven tabs. This help topic discusses the information under the PM Checklist tab. When this tab is selected, a form that lists the preventative maintenance steps for the equipment displays. The description of each step is detailed and specifies the minimum frequency that each step should be performed.

Perform the following steps to access the Equipment/Device Data screen.

Steps

Step 1. Click on the Equipment icon in the menu. The Equipment List screen displays.

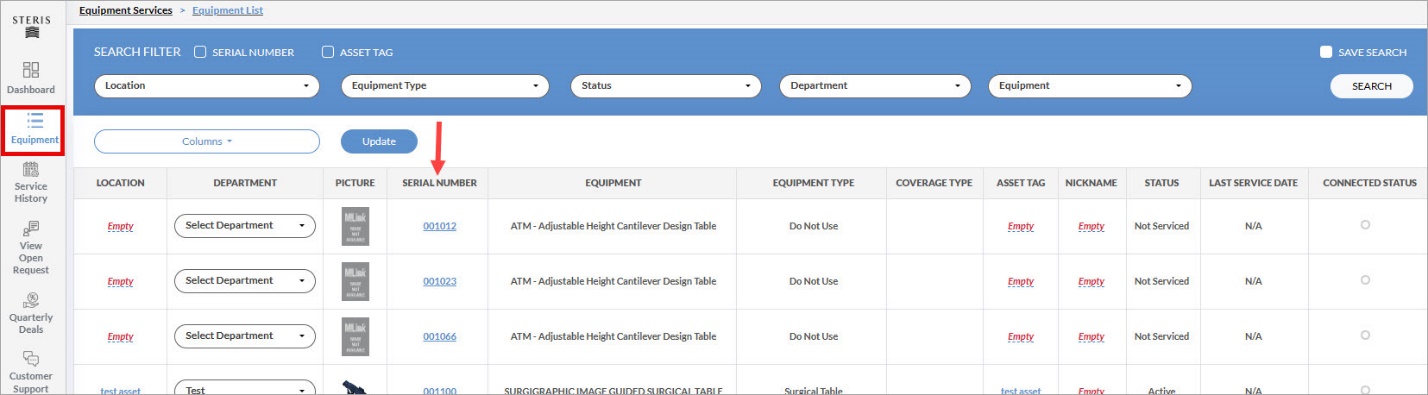

Figure. Equipment List screen

Step 2. Find the equipment you want to see more information about and click on its serial number. Its Equipment/Device Data screen displays with the Device Data tab selected.

Step 3. Select the PM Checklist tab.

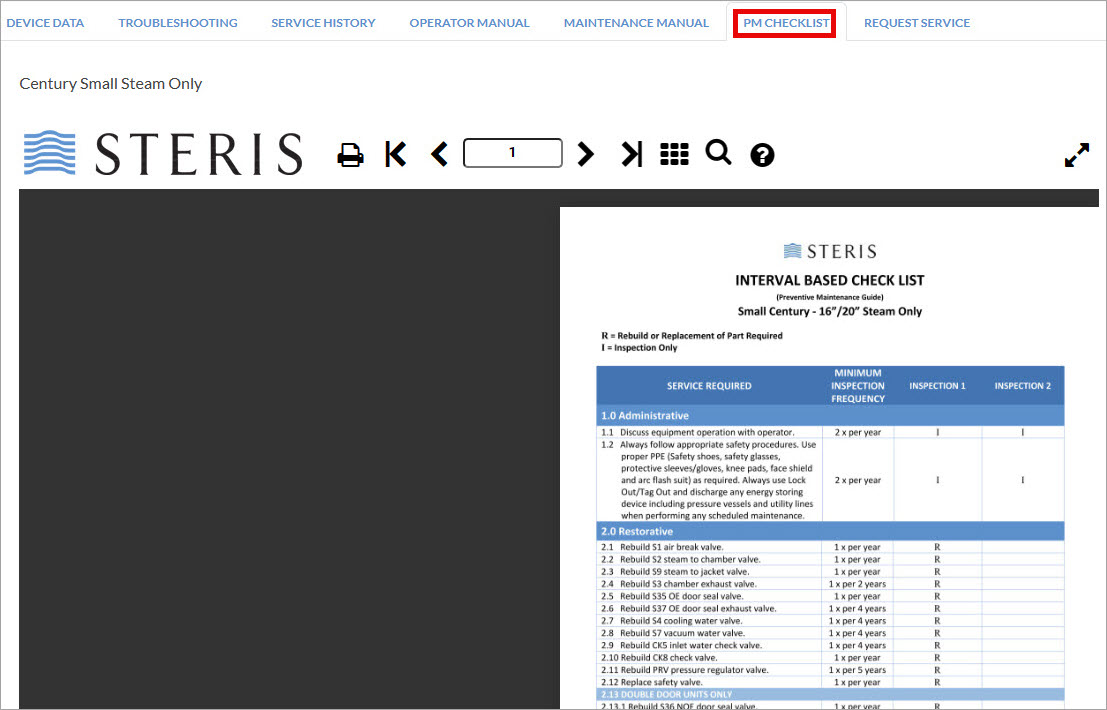

Figure. Equipment Device Data screen (PM Checklist tab)
