Creating a Leak Test Report

You can create a Leak Rate Test report anytime or have the report sent to you automatically on a weekly basis. The report provides a graph about the Leak Test cycles and their Leak Rate values for each tested device.



  • To create a Leak Test report anytime, perform the steps below.



  • To cause Leak Test reports to be automatically emailed to you on a weekly basis, refer to the help topic titled “Updating an Existing Leak Test.” Use the Leak Rate Reports Contacts drop-down menu to select the users who receive the report.

Steps

Step 1.  Go to the Dashboard screen of the ConnectCare service portal.





Figure. Dashboard screen



Step 2. Click on the Remote Monitoring link or the View Command Center button in the second column. The Remote Monitoring Command Center screen displays.

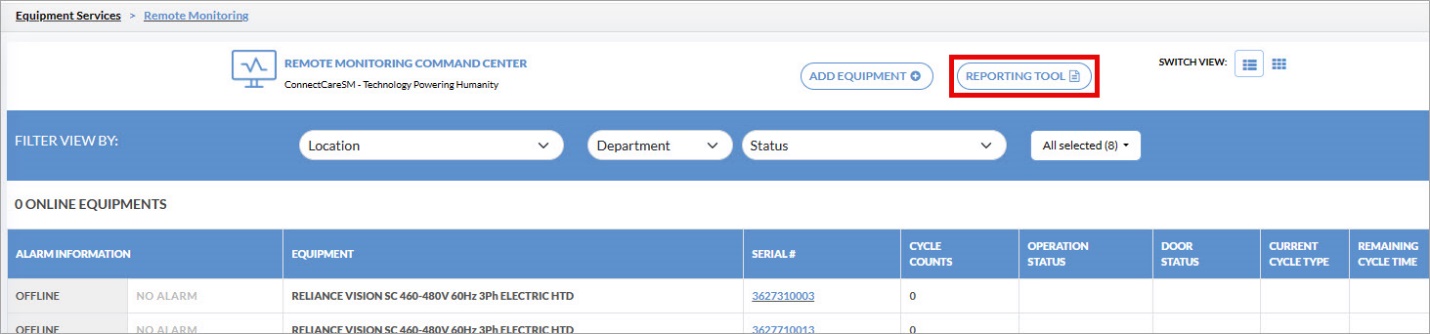

Figure. Remote Monitoring Command Center screen



Step 3. Click on the Reporting Tool button. The Remote Monitoring Reporting Tool screen displays. It is shown below.



Step 4. Enter information in the screen. The fields are described in the table below.



Step 5. Click on the Generate Report button. The report is created and displays in the second column under the Report Preview heading. See the figure below.



Step 6. After the report is created, you can convert the report to PDF format and download it by selecting the Download Report PDF button.



Step 7. After the report is created, you can convert the report to CSV format and download it by selecting the Download Report CSV button.

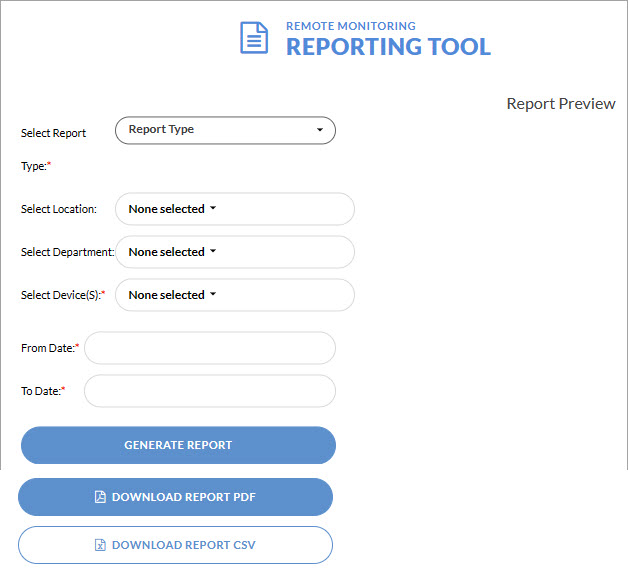

Figure. Remote Monitoring Reporting Tool screen





Table. Items in the Remote Monitoring Reporting Tool screen

ITEM

DESCRIPTION

Select Report drop‑down menu

Select the Leak Rate Report menu option

Type field

Not available

Select Location drop‑down menu

You can select a location to help filter the list of equipment that appears in the report

Select Department drop‑down menu

You can select a department to help filter the list of equipment that appears in the report

Select Device(s) drop‑down menu

Select the equipment that will appear in the report

NOTE: A maximum of five devices can be selected.

From Date field

The information in the report begins from this date

To Date field

The information in the report ends on this date

BUTTONS

Generate Report button

Causes the report to be created. It displays in the Report Preview area.

Download Report PDF button

After a report is generated, select this button to download the report in PDF format.

Download Report CSV button

After a report is generated, select this button to download the report in CSV format.

REPORT PREVIEW – When a report is generated, it displays here.
